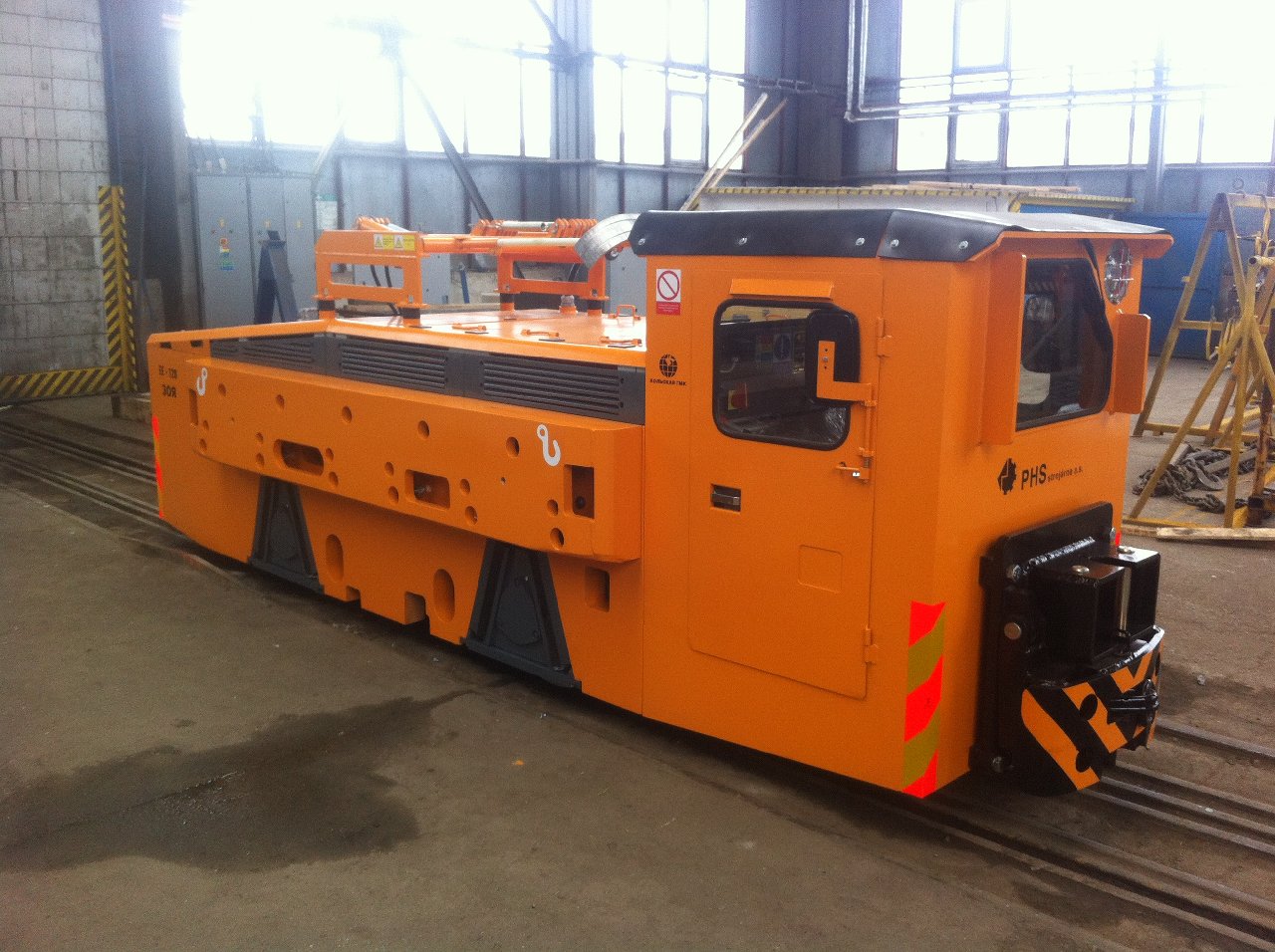

Trolley Locomotives

Trolley locomotives are designed for horizontal rail transport especially in mines and enclosed spaces, to the non-hazardous areas without explosion risks. They are certified according to European safety standards and meet their requirements. They can work on slopes of rail tracks to 35‰, with track gauge from 500 to 1060 mm, at ambient temperatures from -10 to 40 °C.

Locomotives have single cabin weighing from 5 t to 20 tons; the cabin is removable for easier transport into underground tunnels. Transmission of torque moment from the electric motors is through the axle gearbox to travel wheels. The chassis is of dual-axle type and travel wheels are secured with interchangeable rims. Suspension of locomotives is provided by elastic rubber-metal blocks of sagittal shape. The electric motors are maintenance-free, three-phase, asynchronous, with external cooling, and with power from 30kW to 2x75 kW. Speed and engine torque is controlled by the frequency converter. Trolleys and axle bus-bars/pantographs are fitted with carbon or aluminum strips. Engine and brake control is proportional by means of one lever in its entire range of travel speed.

Locomotive braking is performed by two independent systems on both axles: electrodynamic – it means by electric motors through mechanical gears and mechanical – it means by mechanical dual circuit brake and by mechanical action through direct linkage to travel wheels. Brake control is proportional and maximum brake force/stopping power is self-adjustable. Parking brake is automatic. The security system provides automatic stop of the locomotive engine in a case of failure mode and when exceeding the temperature and pressure limit values. The driver is informed about all conditions on the dashboard, and such information is saved into control system memory.

Technical parameters are here.

If you are interested in learning more or have questions, please do not hesitate to contact us.
